PURROS PG-X3A End Mill Grinder, Grinding Ranges Diameter: Φ4-Φ20mm, Grinding Point Angle: 0°-5°, Power: 220V/160W

Description

Description

PURROS PG-X3A End Mill Grinder, Drill Bit Grinding Machine, Drill Bit Grinder

Description

End mill grinder is a versatile grinding device that can be applied for cutting operations which need to be done in different angles. With this extensive types of cuts over different materials are carried out in accordance with the specific industrial usage.

 PURROS PG-X3A End Mill Grinder, Drill Bit Grinding Machine, Drill Bit Grinder

Model: PG-X3A
Diameter: Φ4-Φ20mm
Power: 220V/160W
Speed: 4400RPM
Point angle: 0°-5°
Dimension: 35*26*27CM
Weight: 16KG

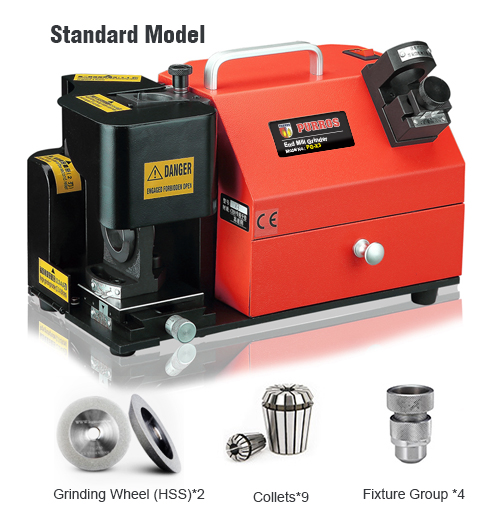

Standard Model: Grinding wheel(4-14mm) :SDC (for carbide)×1
Grinding wheel(16-20mm) :SDC (for carbide)×1
Types of ER20 collet:  Φ4,Φ6,Φ8,Φ10,Φ12,Φ14
Types of ER40 collect: Φ16,Φ18,Φ20
Two  collet chucks( 4-14mm):2, 4 flutes *1 piece; 3, 6 flutes*1 piece
Two  collet chucks( 16-20mm):2, 4 flutes *1 piece; 3, 6 flutes*1 piec
Optional Model: Grinding wheel(4-14mm): CBN (for HSS)
Grinding wheel(16-20mm): CBN (for HSS)

Features:

It is a good alternative for conventional mills and above all it is cost effective and shows enhanced performance. It is without doubt one of the versatile tools designed for smooth and accurate milling process. This equipment helps to make different shapes of metal components and works several steps ahead than of conventional tool as in traditional process possibilities of this equipment to break were found to be higher as the edge of this instrument becomes comparatively weaker. This tool is highly supportive in this aspect as the operator can create intricate drilling and effective sharpness with least difficulties.

2-Flute End Mills

3-Flute End Mills

4-Flute End Mills

Fabricating of Milling Cutter

Calibration of Milling Cutter
