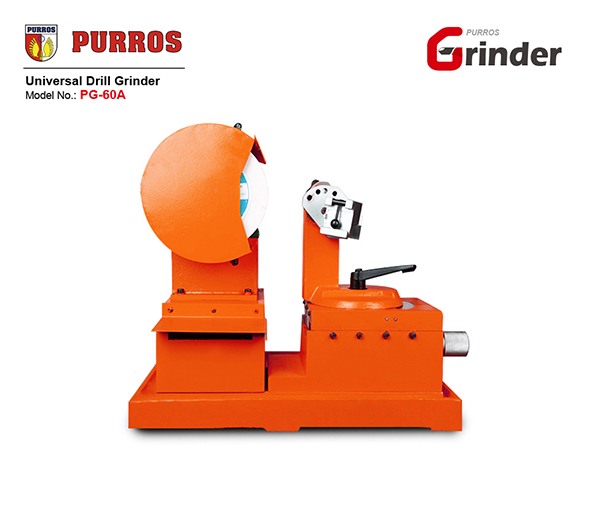

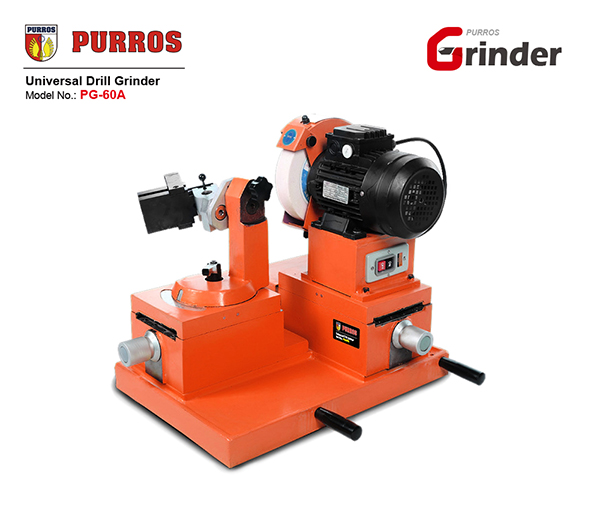

PURROS PG-60A Universal Industrial Drill Bit Grinder, Grinding Ranges Diameter: Φ3-Φ60mm, Grinding Point Angle: 30°-180°, Power: 220V/550W

Description

Description

sharpening machine with drill bits, drill bit grinder, drill bit sharpening machine, Universal Drill Bit Grinder, drill bit sharpener

Being one of the reputed organizations in the market, we are engaged in providing an exclusive range of Special Purpose Drill Bit Grinding Machine.

sharpening machine with drill bits, drill bit grinder, drill bit sharpening machine, Universal Drill Bit Grinder, drill bit sharpener, drill bit grinding machine, PG-60A

sharpening machine with drill bits, drill bit grinder, drill bit sharpening machine, Universal Drill Bit Grinder, drill bit sharpener, drill bit grinding machine, PG-60A

PRODUCT INSTRUCTION

Drill Grinding Machine is a portable machine used for Quick & Accurate grinding of drill point those are made by high grade of material. These are according to the client specification.  The PG-60A drill grinder can sharpen Φ3 to Φ60 all kinds of drills, such as standard twist drills, multiple diameter drills, bottoming drills, 2-four fact drills, masonry drills, wood drills, end mills, spot facer, and all kinds of flank, rake face, chisel edge and chamfering of point angle drills.

SPECIFICATION

Model: PG-60A
Grinding Range: Φ3-Φ60mm
Point Angle: 30°~180°
Power: AC220V
Motor: 550W
Speed: 2800rpm
Dimension: 60*42*45cm
Weight: 140kg
Standard Model: Grinding wheel :CBN (for HSS)×1
Collet chuck:×2 pcs
